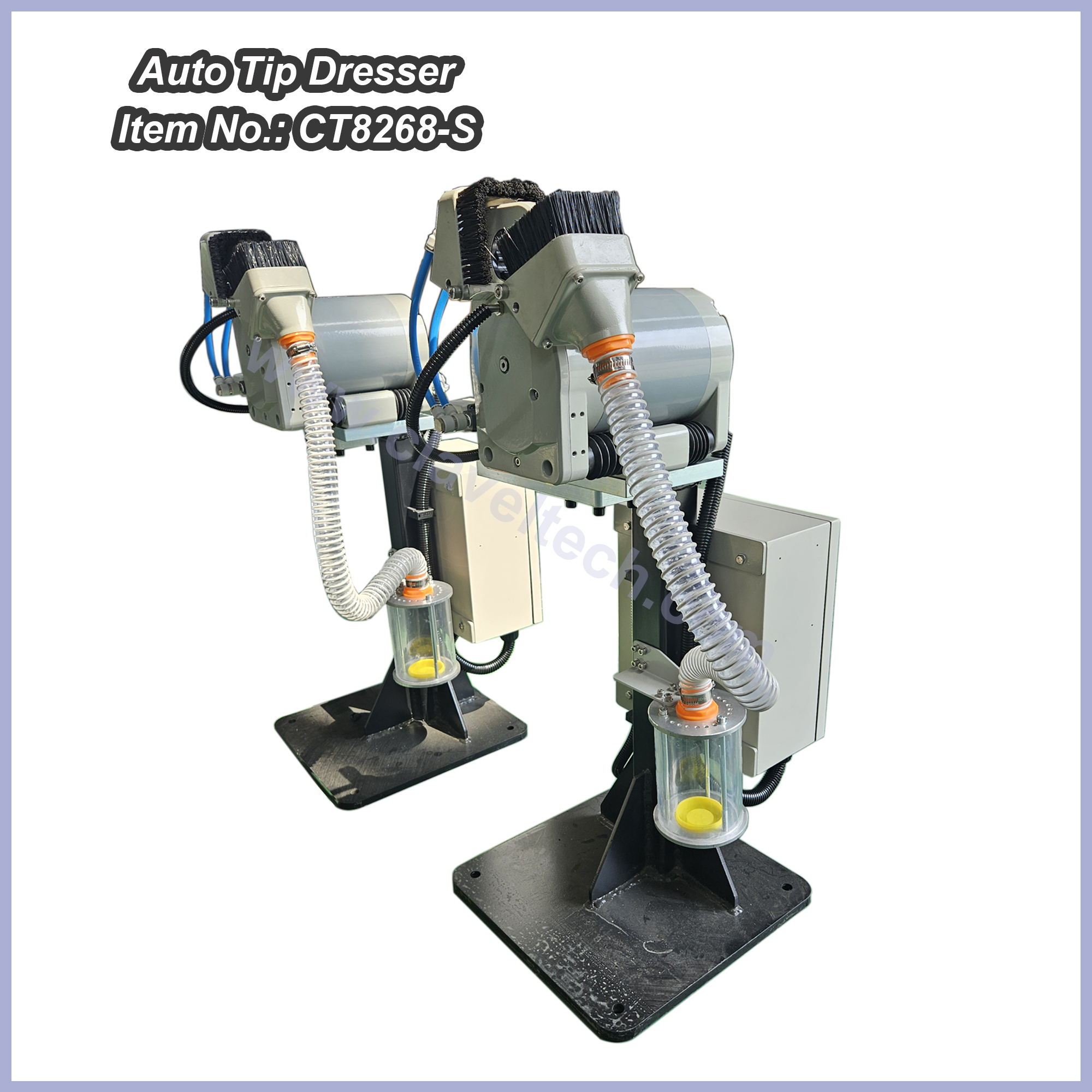

Auto Tip Dresser CT8268-S
Auto Tip Dresser CT8268-S

Auto Tip Dresser CT8268-S

Standard：  Rotation sensor
                  Head position V type/ H type/ T type
                  Electrode chips collector
                  Over current sensor
                  5 years warranty
INQUIRY
Description



CT8268-S

■High trimming torque (rated output torque: 46N*m) and high revolving speed (trimming period: 1s).
■High-tenacity blade and high wear-resistance blade are optional.
■Adjustable installation height of tip dresser main engine; it can be switched to either horizontal or vertical installation (Type V, H and T supported).
■Outsourced parts with exquisite workmanship and strict standard (SIEMENS, Phoenix, SMC, THK and NSK).
■Customized swing arm type tip dresser.



Technical parameters of CT8268 series electrode tip dresser


Model

CT8268-S

Drive mode

Gear drive

Power supply

3-phase AC 380V

Frequency

50Hz

No-load revolving speed

246rpm

Rated output torque

46N*m

Rated output power

1.2kW

Floating adjusting range

±15mm

Solenoid valve SOL

DC24V 4.5W Max. 2.0MPa

Weight (body)

15Kg

Weight (complete machine)
52Kg
