The Auto Tip Changer in Robotic Spot Welding Stations
Introduction
In the ever-evolving world of industrial automation, the precision and efficiency of welding processes are paramount to maintaining high production standards. One of the key innovations that has revolutionized robotic spot welding is the development and integration of the auto tip changer. This device, though small in its individual function, plays a critical role in optimizing the welding process, reducing downtime, and improving the overall performance of robotic welding stations.
What is Robotic Spot Welding?
Robotic spot welding is a commonly used technique in industries such as automotive manufacturing, where two or more metal parts are joined together by the application of heat and pressure through an electric current. The robot arm, equipped with welding tools (usually copper alloy electrodes), moves to the correct position and applies the necessary force and current to weld the components. Due to the high precision and speed required in automotive production, robots have been increasingly integrated into the spot welding process.
The Role of the Tip in Spot Welding
The welding tip, or electrode, is a critical component in the spot welding process. It is responsible for conducting the electric current that generates the heat needed to melt and fuse the metal parts together. Over time, the tips can wear out due to the high thermal and mechanical stresses involved in the welding process. Regular replacement of these tips is necessary to maintain the quality of the welds and avoid potential defects. This is where the auto tip changer comes into play.

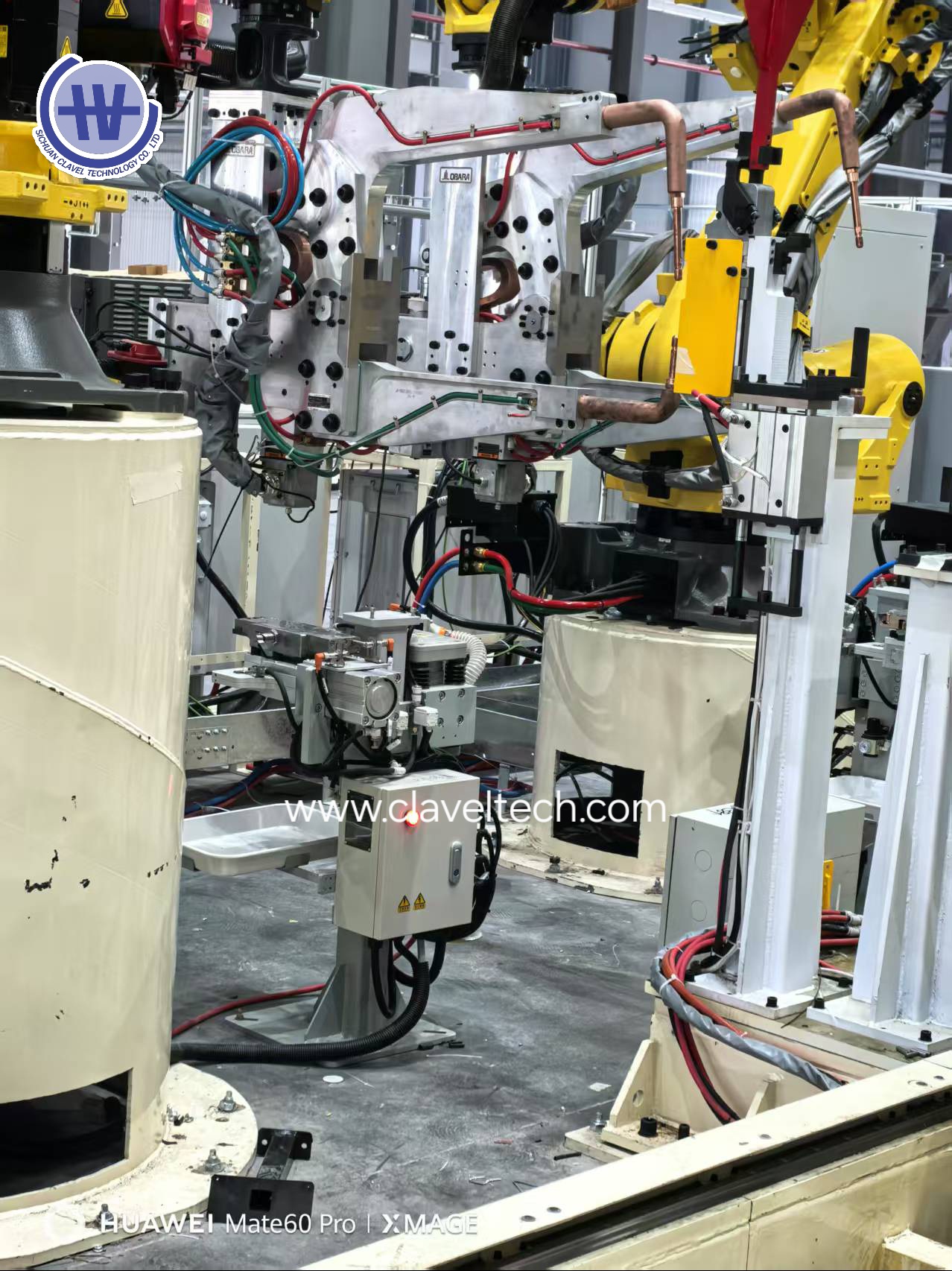

The Auto Tip Changer: Function and Design
An auto tip changer is an automated system that enables the robotic welding station to automatically replace or change the welding tips (electrodes) when they become worn, damaged, or when different types of welds are required. Typically, the system is integrated into the robot’s end-of-arm tooling (EOAT), where the welding tips are mounted. The auto tip changer works in a few distinct steps:
Detection: The robot system continuously monitors the condition of the welding tips. Some advanced systems include sensors that detect the wear on the tips based on the number of welds performed, the type of material being welded, and the heat generated during welding. This information is used to determine when a tip change is required.
Tip Replacement: Once the system identifies that a tip change is necessary, the robot arm uses the auto tip changer to remove the worn-out tip and replace it with a new or suitable one from the tip changer’s storage unit.
Increased Productivity: Automated tip changes allow for faster response times in the production process. Robots can continue to perform spot welding with little interruption, which is particularly important in industries like automotive manufacturing, where high throughput is essential.
Cost Efficiency: While the initial investment in an auto tip changer may be significant, the long-term savings in terms of reduced labor costs and enhanced production efficiency outweigh the costs. Furthermore, the system helps optimize electrode life by ensuring they are replaced at the right time, which can reduce overall tip consumption and extend the lifespan of individual tips.
Improved Safety: By automating the tip replacement process, the need for human workers to be in close proximity to the welding robots is reduced, which enhances safety in the workplace. The risk of burns or other injuries is minimized, as humans are not required to handle the hot welding tips directly.
Challenges and Considerations Despite the many benefits, the integration of an auto tip changer into robotic spot welding stations is not without its challenges. One significant challenge is the cost of implementing such systems, which may require additional programming, integration with existing robotic arms, and customization based on specific production requirements. Another consideration is the maintenance and calibration of the auto tip changer itself. While the system is designed to reduce downtime, it can experience malfunctions if not properly maintained, leading to potential production delays. Moreover, the complexity of integrating an auto tip changer into a highly variable production environment can pose difficulties. For example, in situations where materials or welding parameters change frequently, the auto tip changer must be adaptable enough to handle these changes seamlessly. Conclusion The auto tip changer is a pivotal innovation in the realm of robotic spot welding, offering substantial improvements in efficiency, precision, and safety. By automating the process of tip replacement, this device significantly reduces downtime, enhances the consistency of welds, and increases overall productivity in high-demand environments like automotive manufacturing. While the implementation of such systems may involve some initial investment and planning, the long-term benefits in terms of cost savings and operational performance make the auto tip changer a valuable asset for modern robotic welding stations. As technology continues to advance, we can expect even more sophisticated versions of this device, further driving automation and efficiency in manufacturing processes worldwide.
